Carving a Path to Progress
George Schrade and the Impact of the Shielding Machine
Imagine a world where the precision and efficiency of modern technology meets the craftsmanship of traditional knife making. George Schrade, a major innovator, contributed significantly to bringing this world into existence, forever altering the landscape of the cutlery industry. Responding to the need to automate labor-intensive processes, Schrade developed a groundbreaking invention—the shielding machine. This device automated the meticulous task of carving inlets in knife handles for the installation of shields, a job that had always been painstakingly done by hand.
However, the path to progress wasn't always smooth. G. Schrade's machine ignited a conflict between the old and the new, the artisans and the innovators. As he embarked on a global journey to promote his invention in 1910, he found himself in Sheffield, England, at the heart of a confrontation that would redefine the cutlery industry.
While many associate George Schrade with his notable automatic knife designs and the establishment of the Press Button Knife Company and Schrade Cutlery Company, his ingenuity wasn't confined to creating unique tools. His ambition led him to develop revolutionary machinery that marked a significant shift in the cutlery industry—one of which being a shielding machine.
The shielding machine, as the name suggests, was designed to carve precise inlets in knife handle covers. These carefully carved cavities allowed for the installation of a shield or metal plate, adding a distinctive aspect to the design of the knife. The shielding machine, documented meticulously in Schrade's patent, was a radical departure from the labor-intensive manual processes of the time, offering a level of precision and efficiency previously unattainable.
Schrade's patent showcased an innovative mechanism capable of producing consistent, uniform cavities. This mechanized process not only added a new dimension to knife design but also dramatically increased production efficiency. The introduction of this technology was a major step forward, replacing artisanal handiwork with precision engineering.
The impact of Schrade's shielding machine came to prominence during his trip to Sheffield, England, in 1910. The Sheffield Cutlers at Thomas Turner and Company, who had taken on a large order for the British Navy, were struggling with the knife handles made of rubber, a material considerably harder to work with than conventional materials like bone or wood. Yet, Schrade's shielding machine carved out the required cavities in these rubber handles with ease, ensuring the timely completion of the Navy's order.
Despite the machine's successful deployment, the reaction among Sheffield's factory workers was less than enthusiastic. Fearing the advent of mechanization would render their skills obsolete and threaten their livelihood, the workers went on strike until the shielding machine was removed from the premises. This event highlighted the tension that can exist between technological progress and traditional craftsmanship.
Yet, the apprehensions of Sheffield's workers towards mechanization and the shielding machine turned out to be an unforeseen advantage for the US cutlery industry. Unlike the Sheffield workers, who were deeply rooted in a long-standing tradition of hand craftsmanship, their counterparts in the younger American industry were more open to the adoption of mechanized processes. This openness to innovation allowed for enhanced factory efficiency and significant labor cost savings in the US. As a result, the US cutlery industry was better equipped to progress rapidly and become a formidable player on the global stage.

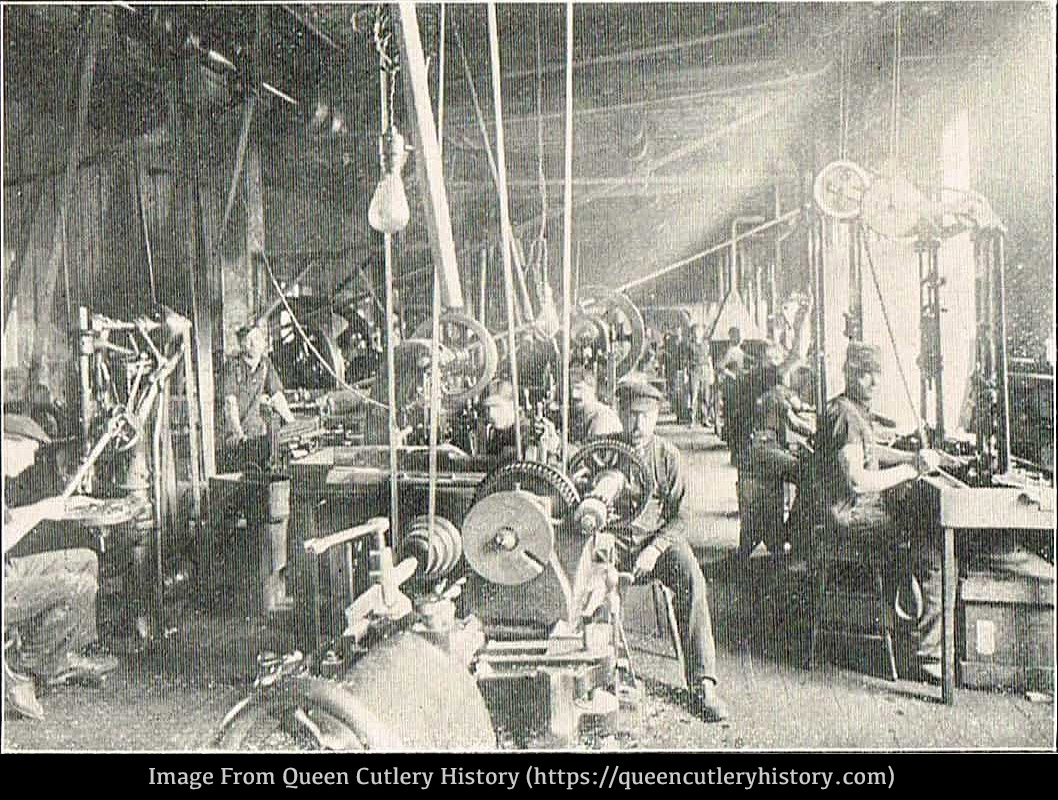

Pictured below is an image taken from a cutlery factory during the industrial transformation in the US. Although it's not certain if one of these machines is a derivative of Schrade's groundbreaking shielding machine, the scene provides a vivid illustration of the mechanization that was beginning to reshape the industry.
The workers are seen engaged with various mechanical devices, a contrast to the more labor-intensive processes seen in this industry a few years before. This image captures a significant moment in time, portraying how manufacturers adapted and integrated new technologies into their workflow.
The overall picture is a powerful testament to the spirit of innovation that surged through factories of that time, much of it sparked by pioneers like George Schrade.
The shielding machine is a testament to Mr. Schrade's forward-thinking approach and resolve to challenge the status quo. His contributions underscored the transformative power of technological innovation in traditional industries, playing a pivotal role in the mechanization of the cutlery industry and helped propel the US cutlery sector to new heights.
Appendix A: Summary of the Patent Document's Full Text
The invention pertains to machines designed for routing or mortising for inlaying work. The machine is especially designed to work on thin materials like bone, ivory, or wood that are used as coverings for the handles of pocket knives. The machine carves out a mortise or recess in these handle coverings to allow for the inlay of a metal plate or shield.
This routing machine includes novel mechanisms and means for holding and adjusting the pieces of material while they are being operated on, as well as new and novel chisels or tools for routing out the material. It can accommodate either one or two routing tools depending on the shape or size of the mortise to be cut.

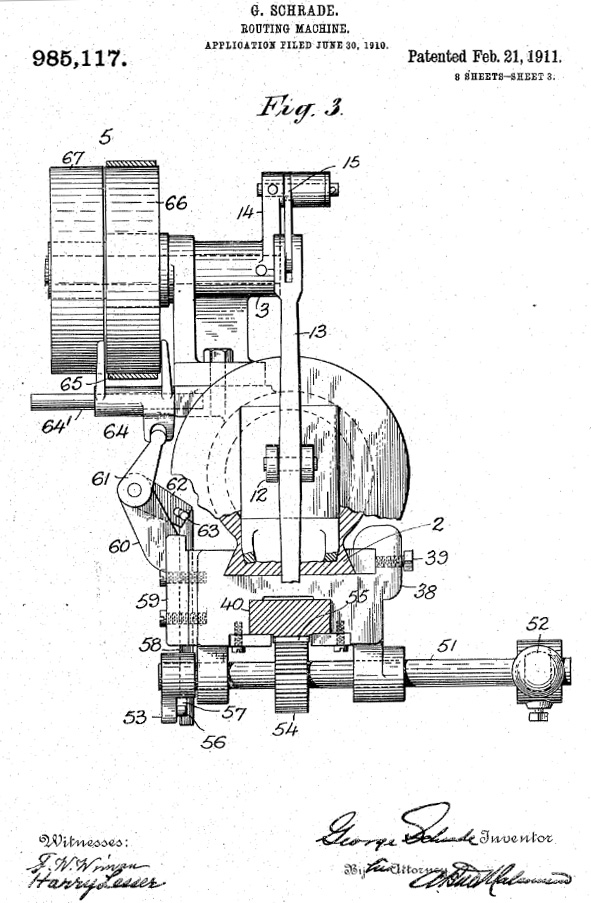

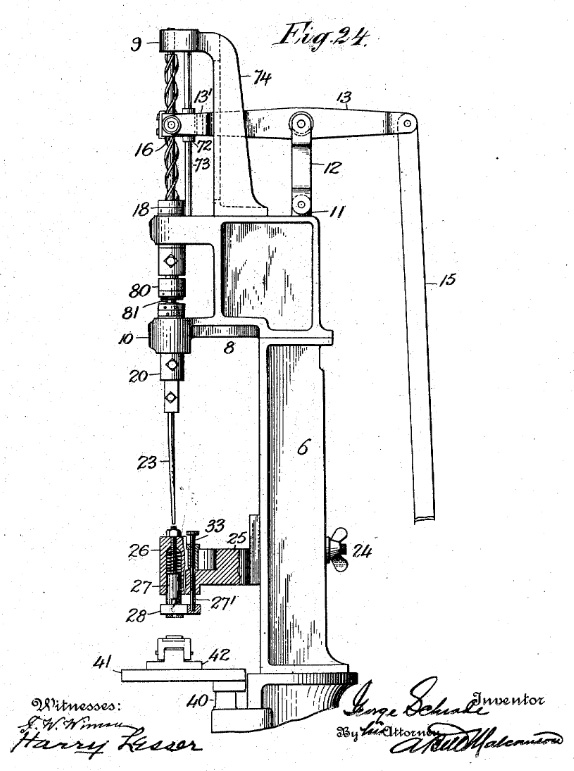

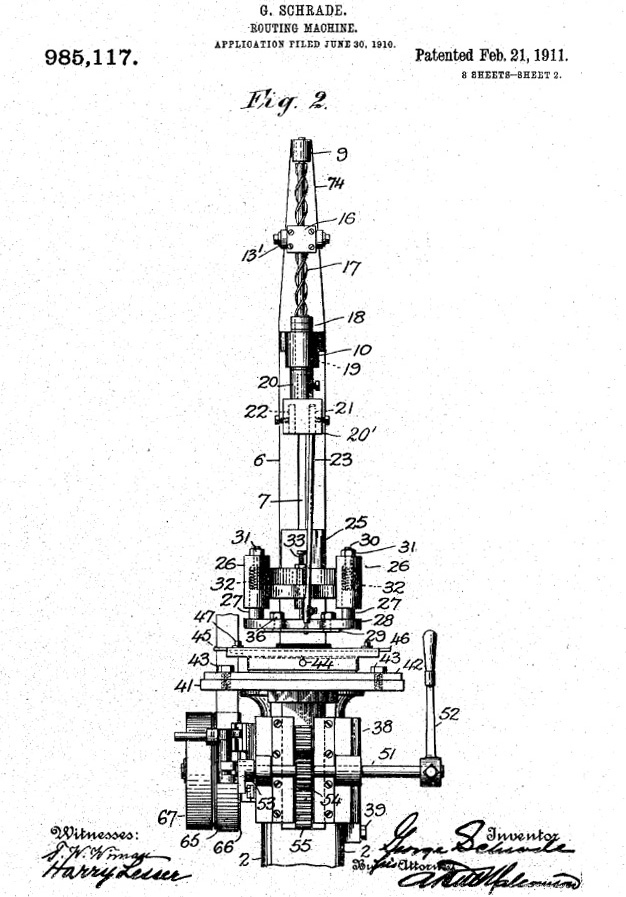

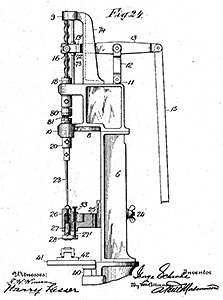

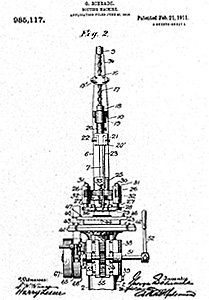

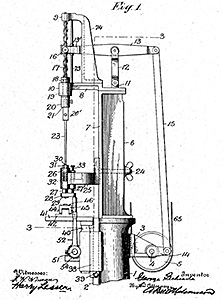

The machine is mounted on a pedestal with various operative parts including a driving pulley, an extension with a vertical slot, a bracket, and a driving spiral that rotates in both directions. The spiral shaft of the machine is designed to hold the routing tool.

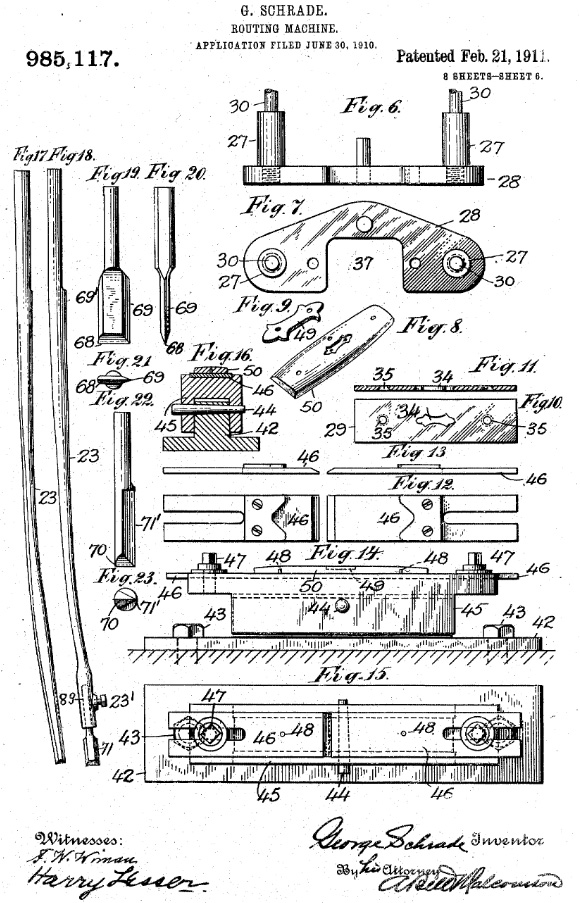

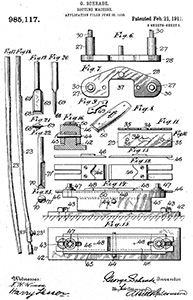

The routing tools can be of various forms and construction as shown in different figures. To avoid waste and loss from continual sharpening, the tools are designed in two parts: a springing portion serving as a bit holder and a shorter cutting tool or bit that is socketed into the bit holder.

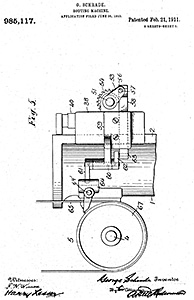

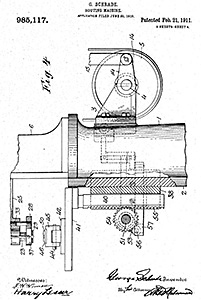

The machine also has a die holder and a work holder that are designed for flexibility and adjustment under pressure, and a mechanism to raise and lower the work block carrying the material to be mortised. The operation of the machine is initiated and stopped by shifting a belt.
This invention represents a significant advancement in routing machines, especially for detailed and delicate work such as creating mortises in knife handles for inlaying work.

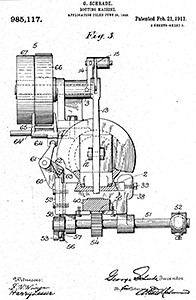

A triangular tool is used, which is sharpened along its bottom and front edges. The machine's operation involves a nut, which is positioned within a fork, and a block that carries the nut. A guide rod is connected to the nut, which helps maintain minimal friction during the nut's vertical movement along the spiral shaft.
When the handle is moved by the operator, the table carrying the work holder is lifted. Simultaneously, a driving belt is thrown onto a pulley, which makes a walking-beam rock and moves the nut along the spiral shaft. This process causes the routing tool to rotate within a die. The tool holder turns in one direction during downward movement and in the opposite direction during upward movement. This bi-directional movement allows for quick and even work on the material being operated on.

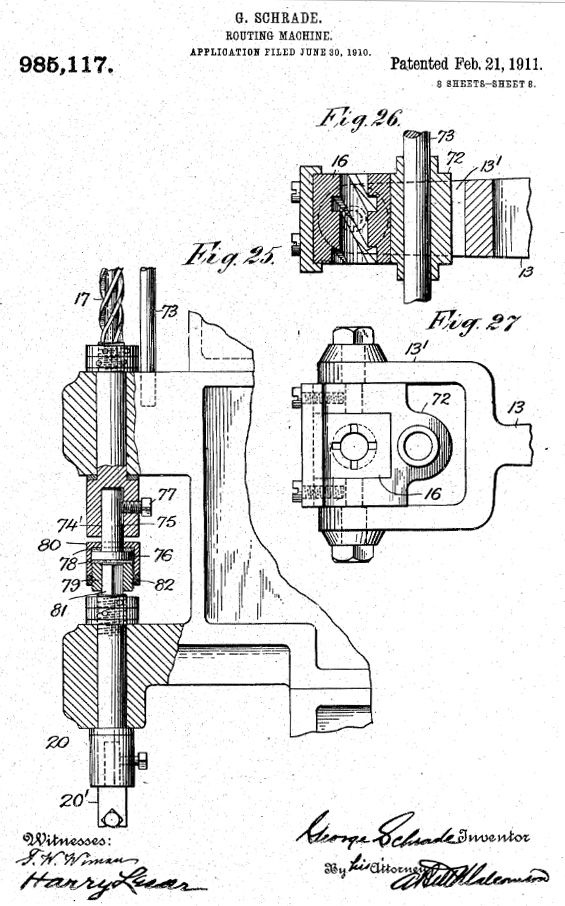

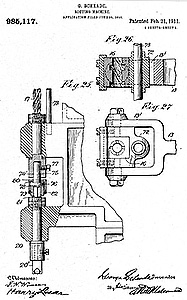

To avoid any damage due to undue resistance, a flexible or yielding coupling is incorporated at the lower end of the spiral shaft. This coupling is formed of a socket, a shank, a disk, and several washers of fiber, which can slip and turn independently if required, thus preventing any damage to the machine's bits.
The patent goes on to list a series of claims about the machine's various components and operational features. These include elements like the routing tool, the reciprocating rotating shaft, the die that confines the operation of the tool, and the mechanism that changes the direction of rotation of the shaft.
The document concludes with the claim that the machine includes an upright frame, routing tools, a crank arm, a vertical shaft with spiral threads, a nut that reciprocates and reverses the rotation of the shaft, and an adjustable base to carry the work. The patent also highlights the capability of the machine to handle different work operations through the use of various attachments or adjustments.
Appendix B: AAPK Knife Shield Image
The first image in this article includes the shield detail of an AAPK-branded knife, manufactured by Canal Street Cutlery in 2009. This knife was chosen not just because we are All About Pocket Knives, but also due to its connection with Schrade Cutlery.
Schrade Cutlery played a significant role in the US economy during the early 1900s; it was one of the largest corporations at a time when nearly every man, and some women, routinely carried a pocket knife. However, as demand for US cutlery waned, the once-mighty Schrade succumbed to bankruptcy. Although the brand name persists, most Schrade knives are now made overseas, except for a few special factory orders crafted by companies like GEC.
Out of Schrade's ruins, both the old factory equipment and the company's workforce gave rise to a new entity: Canal Street Cutlery. It was this company that manufactured the AAPK-branded knife pictured here - a lineage we're incredibly proud to associate our name with.
References:
Schrade, G. M. (1982). George Schrade and His Accomplishments to the Knife Industry.
George Schrade Knife Company
Schrade, G. (1911). Routing-Machine. U.S. Patent No. 985,117. Issued February 21, 1911. Retrieved from https://patentimages.storage.googleapis.com/27/cc/47/76e0cd4aafbb7d/US985117.pdf
