Pocket Clip Sheath for Slipjoint Knives (Tutorial)

This forum is for posting step by step techniques used in the art of making, customizing, and repairing knives. Please stop by and teach a few things or maybe learn something new from the talented members of AAPK.
User avatar
augustus88
Posts: 228
Joined: Thu Dec 03, 2009 3:02 pm
Location: SW Florida

Pocket Clip Sheath for Slipjoint Knives (Tutorial)

Postby augustus88 » Thu Mar 18, 2010 12:20 am

I had a request for my homemade pocket clip tutorial, so here goes....

All of the materials used can be purchased at local stores like Michael's, Home Depot and Lowes. You can upgrade to finer materials purchased at Tandy leather stores and knife making supply houses often for a better price.

Not sure if this is the best place for this thread so please move it if necessary. Hope some of you find it helpful.


Need to make a pocket clip like the smaller one pictured for my larger knives like the Great Eastern #23.

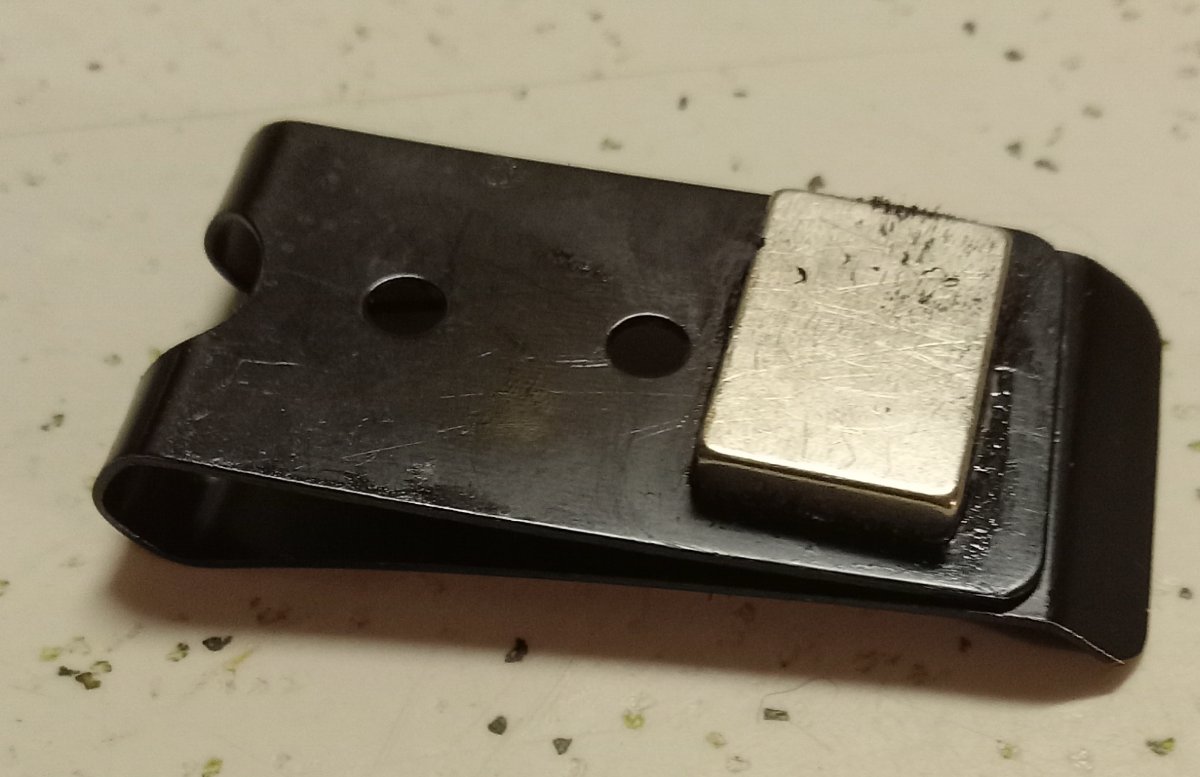

I purchased this cheap cell phone case at Lowes for the clip. Different style clips are available through other sources.

Cut the clip off the case.


Drill the rivets out.


Cut a piece soft leather to fit your knife. I purchased mine at Michael's Arts and Crafts.

Cut a slit for the clip.

Insert the clip.

Punch holes for the rivets.

Rivet the clip to the leather with a Tandy Rivet Kit (purchased mine at Michael's) and a hammer.

Glue a 2nd piece of leather to first piece(with clip) with leather adhesive(Rough sides together). Spread the glue evenly with a small paintbrush.

Allow the glue to dry with the whole assembly pressed in a book. I put the book under a table leg so it stays really flat. Wrap in waxed paper, so any excess glue doesn't stick to the book.

Glue two more pieces of leather together for the other half of the sheath. Press them in another book.

You should now have two pieces of doubled leather that look like this.

Cut the 2nd piece to match. You can do this after the two pieces are stitched together for more accurate results.

Punch holes in the leather using an awl and a hammer or mallet. Mine is a sculpting tool that was modified on a grinder. Space the holes evenly for a nice look.

Use a Tandy(or similar) leather stitching awl and waxed thread to attach both sides. The thread comes in lots of different colors. Follow the directions that come with the awl for best results.

Stretch the case to shape if necessary.

Finished sheaths.


Sheath in my pocket.

User avatar
Another Knife Collector
Posts: 630
Joined: Sat Jan 05, 2008 12:00 am
Location: Michigan, USA

Re: Pocket Clip Sheath for Slipjoint Knives (Tutorial)

Postby Another Knife Collector » Thu Mar 18, 2010 12:29 am

Great tutorial and a good idea ::tu:: I might have to make one myself.
-Phil

User avatar
Froggyedge
Posts: 1121
Joined: Sat May 10, 2008 4:00 pm
Location: Norway

Re: Pocket Clip Sheath for Slipjoint Knives (Tutorial)

Postby Froggyedge » Thu Mar 18, 2010 1:15 am

Well done! ::tu::
Both the sheaths and the tutorial! ::nod::
Knivlaus mann er livlaus mann.

A knifeless man is a lifeless man - Old Nordic proverb.

noddy
Posts: 171
Joined: Mon Mar 12, 2007 10:56 pm
Location: illinois

Re: Pocket Clip Sheath for Slipjoint Knives (Tutorial)

Postby noddy » Thu Mar 18, 2010 2:56 am

Really nicely conceived and executed.

User avatar
Gunstock Jack
Posts: 1623
Joined: Wed Feb 27, 2008 7:59 pm
Location: The "other" Washington

Re: Pocket Clip Sheath for Slipjoint Knives (Tutorial)

Postby Gunstock Jack » Thu Mar 18, 2010 4:47 am

Thanks a million for posting the tutorial. I'm gonna start a couple of these as soon as I have a chance. Great concept and execution. Thanks again for sharing and posting this excellent tutorial!

User avatar
augustus88
Posts: 228
Joined: Thu Dec 03, 2009 3:02 pm
Location: SW Florida

Re: Pocket Clip Sheath for Slipjoint Knives (Tutorial)

Postby augustus88 » Thu Mar 18, 2010 8:45 pm

Thanks for he compliments guys. These sheaths do a great job of protecting your knives while increasing accessibility. Nothing more annoying than a knife hiding under your keys or slamming against your leg in your pocket. The sheath makes carrying large bulky knives so much easier.

Let me know if you encounter any issues or need help figuring out any steps.

User avatar
rangerbluedog
Gold Tier
Gold Tier
Posts: 3466
Joined: Thu Dec 03, 2009 7:42 pm
Contact:

Re: Pocket Clip Sheath for Slipjoint Knives (Tutorial)

Postby rangerbluedog » Fri Mar 19, 2010 3:17 am

well done augustus88! ::tu:: ::idea::
-Blue
Click the link below to order your copy of the Boker book!
https://TheBokerBook.com

User avatar
Darksev
Posts: 756
Joined: Sat Jan 05, 2008 6:07 pm
Location: NE Ohio
Contact:

Re: Pocket Clip Sheath for Slipjoint Knives (Tutorial)

Postby Darksev » Fri Mar 19, 2010 11:18 am

having done a few tutorials, and realizing how bad at it I am, I just have to say this is fantastically done! I'm not a sheath guy, but I might have to give of these a go anyways!

User avatar
CCBill
Posts: 1111
Joined: Wed Jul 20, 2005 6:35 pm
Location: The Lone Star State...

Re: Pocket Clip Sheath for Slipjoint Knives (Tutorial)

Postby CCBill » Sat Mar 20, 2010 12:16 am

Very nicely done. Thank you...
...CCBill 8)...
Only two things are infinite, the Universe and human stupidity, and I'm not sure about the former.
Albert Einstein...

User avatar
augustus88
Posts: 228
Joined: Thu Dec 03, 2009 3:02 pm
Location: SW Florida

Re: Pocket Clip Sheath for Slipjoint Knives (Tutorial)

Postby augustus88 » Sat Mar 20, 2010 12:54 pm

Darksev wrote:having done a few tutorials, and realizing how bad at it I am, I just have to say this is fantastically done! I'm not a sheath guy, but I might have to give of these a go anyways!


Thanks.........glad you like it!

I'm a college art professor, so I do this type of thing at work every day. Teaching students to sculpt and paint by breaking down the process into basic steps and actually showing them how to do it is my preferred teaching method. I live by the step-by-step demo.

Good luck!

User avatar
copperhead75
Posts: 7
Joined: Thu Mar 31, 2011 3:03 pm
Location: Oklahoma

Re: Pocket Clip Sheath for Slipjoint Knives (Tutorial)

Postby copperhead75 » Mon Apr 04, 2011 4:07 pm

::tu:: thank you very much for this! how is the retension? can you remove knife without takin sheath out of pocket?
Ephesians 6:13

User avatar
zed6309
Bronze Tier
Bronze Tier
Posts: 1579
Joined: Fri Mar 04, 2011 8:07 am
Location: poole,dorset,uk

Re: Pocket Clip Sheath for Slipjoint Knives (Tutorial)

Postby zed6309 » Mon Apr 04, 2011 4:19 pm

This is so cool, thanks for posting, i have some leather here but i might need to make a clip, ::tu::
Paul,

friendship is a rare and precious gift,
A day without a pocket knife is the day your need it,

SC Tiger
Posts: 4
Joined: Wed Dec 12, 2012 3:37 pm

Re: Pocket Clip Sheath for Slipjoint Knives (Tutorial)

Postby SC Tiger » Mon Dec 17, 2012 4:43 pm

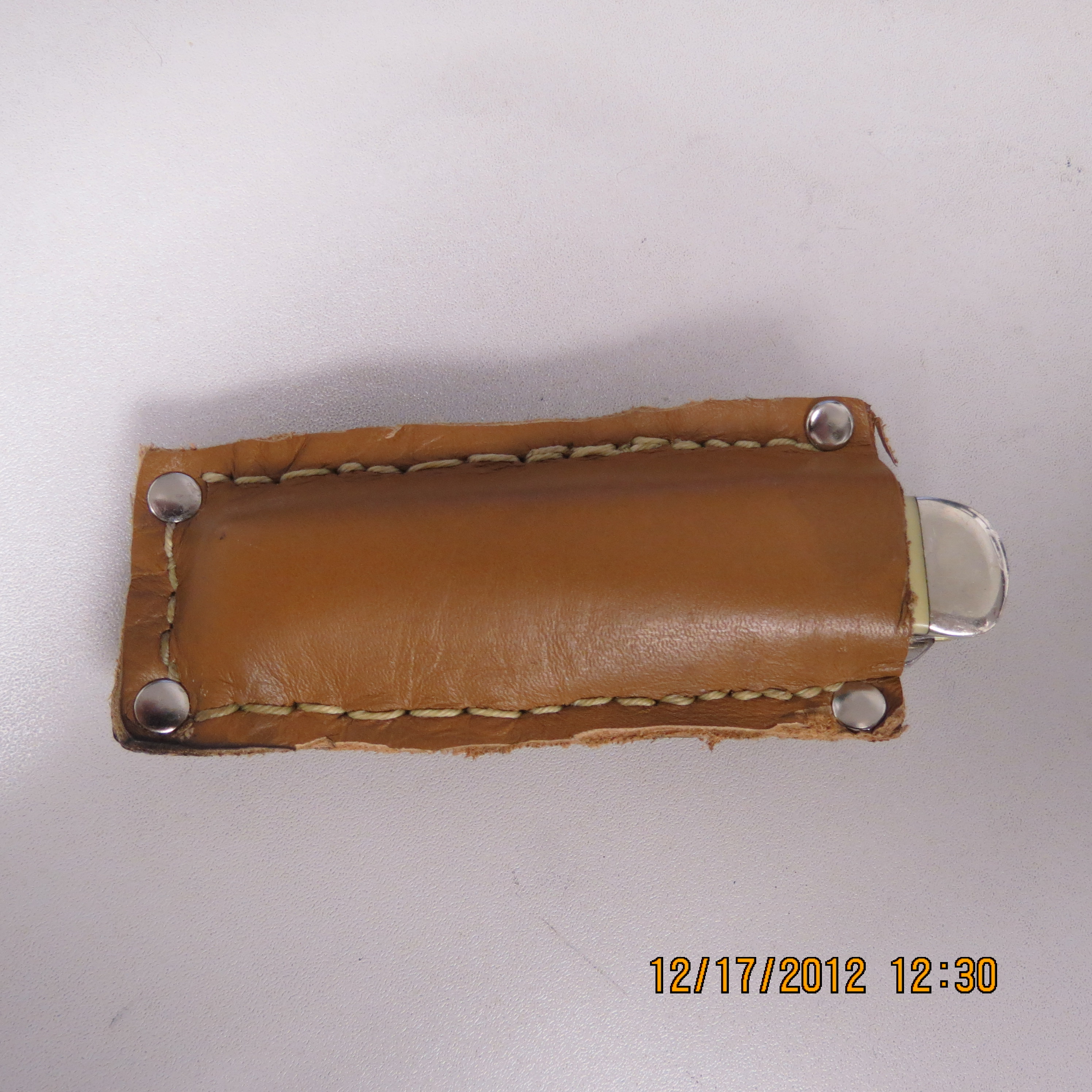

I took a shot at making one of these this weekend for my Case Trapper. I attached pictures of the results. It came out kind of rough but it does work. I got the clip from a cheap phone case. Tandy Leather sells pocket clips as well and I might order one for my next case.

The biggest problem I had was getting the rivets straight. Also, as you can probably tell, I am NOT a tailor. And yes, I realize that one of the rivet backs on the opening end is larger than the other. I ran out of rivets (like I said - I was having problems).

If I make another one I will probably fold over the leather so that the fold is at the top, for a cleaner appearance.
Attachments
Picture 001.jpg
Picture 002.jpg

User avatar
tjmurphy
Posts: 11214
Joined: Fri Sep 11, 2009 12:41 pm
Location: South of Cincinnati

Re: Pocket Clip Sheath for Slipjoint Knives (Tutorial)

Postby tjmurphy » Mon Dec 17, 2012 5:24 pm

Looks like a pretty good first try to me. ::tu:: Perfection comes with practice
"There are none so blind as those that refuse to see"

God Bless America - Though I don't know why he would want to.

SC Tiger
Posts: 4
Joined: Wed Dec 12, 2012 3:37 pm

Re: Pocket Clip Sheath for Slipjoint Knives (Tutorial)

Postby SC Tiger » Tue Dec 18, 2012 6:23 pm

Re-reading the tutorial I think I see part of where I goofed. I should have pre-punched the holes for the stitching before doing the actual sewing. That would have resulted in more even stitching.

I also probably should invest in a real punch for the rivet holes.
