Klein
-
terdl76
- Posts: 143
- Joined: Tue Oct 30, 2012 7:25 pm
Klein

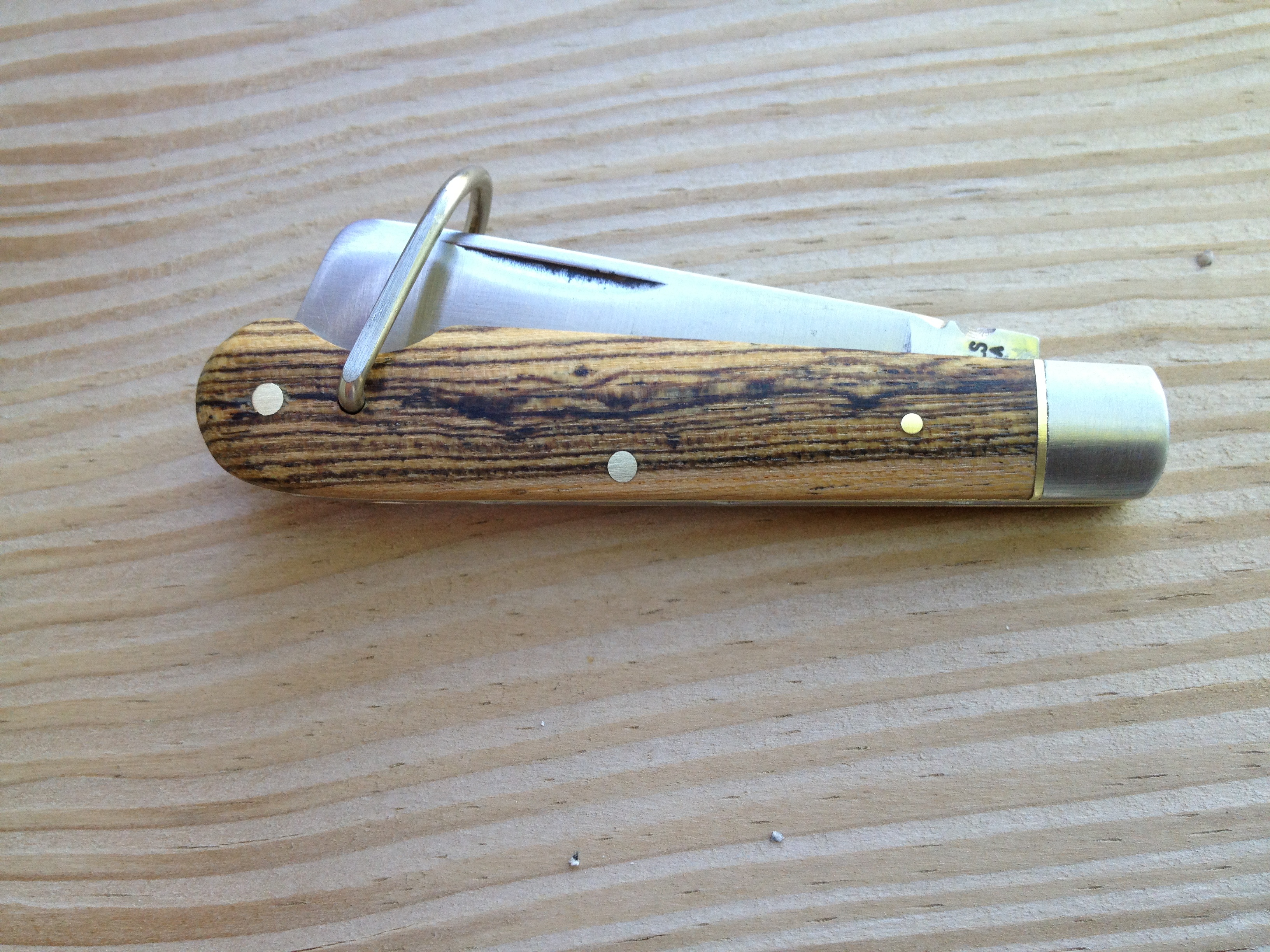

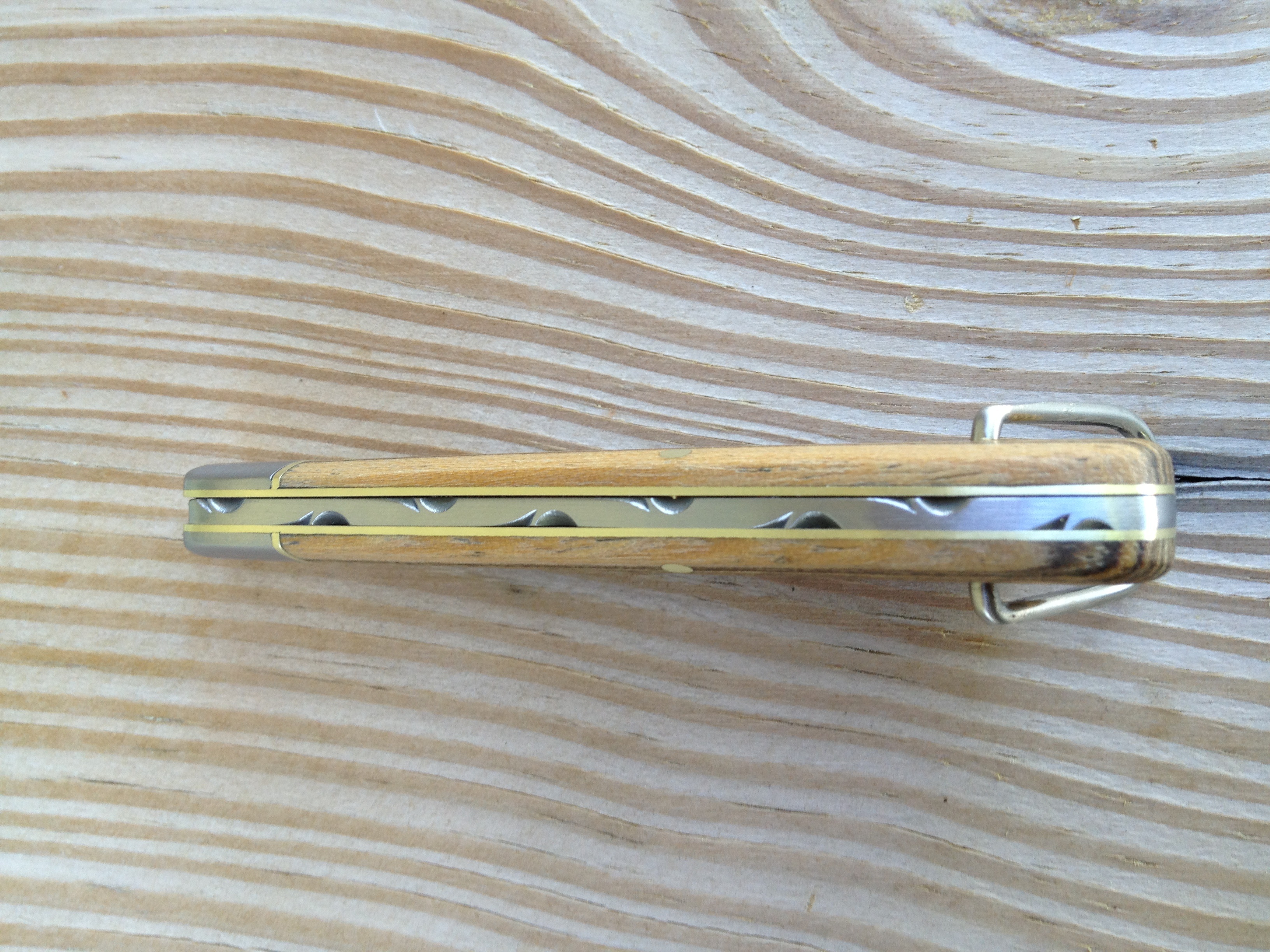

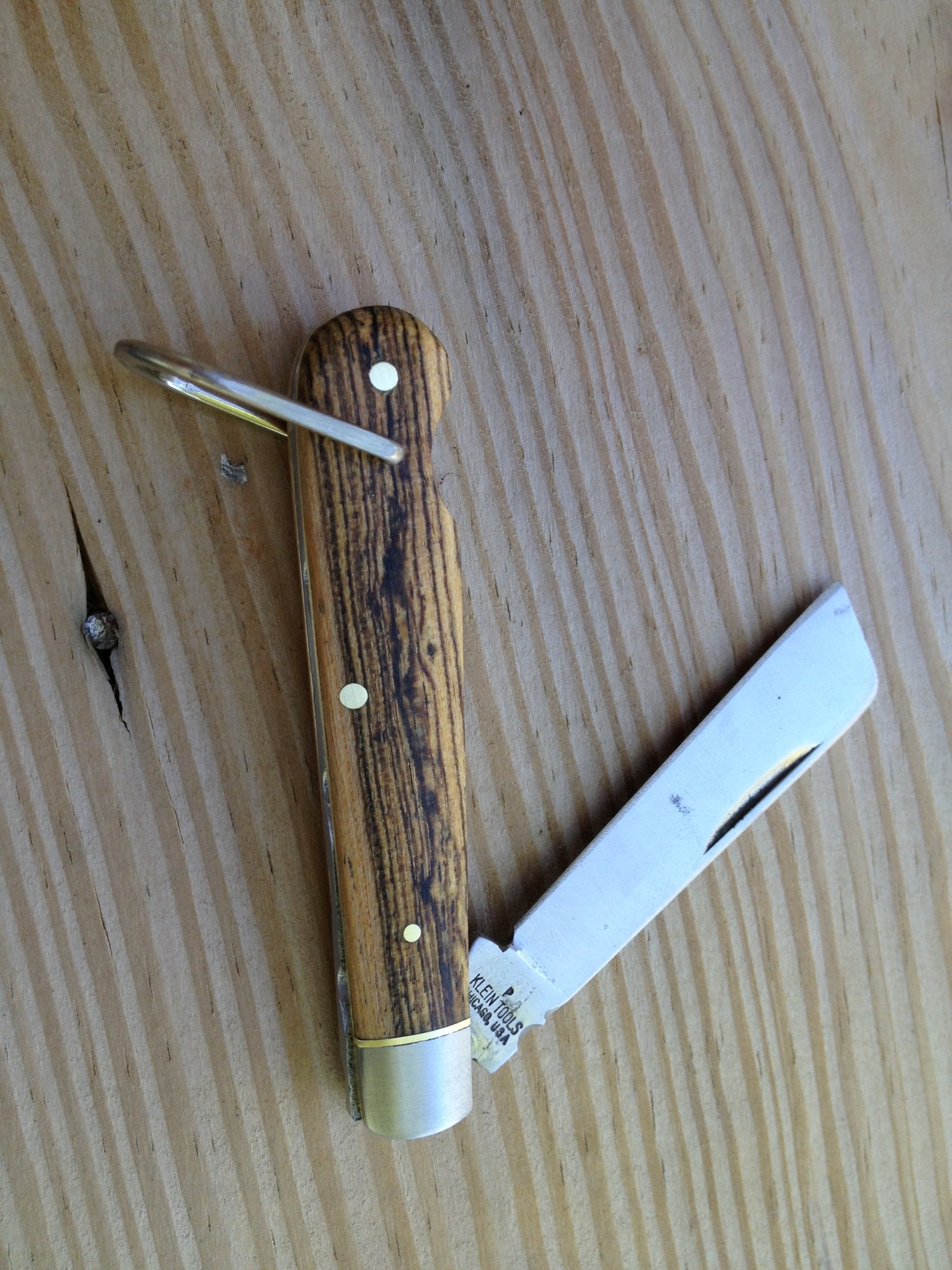

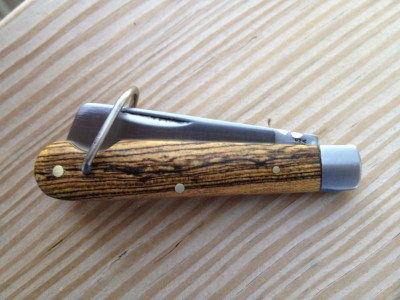

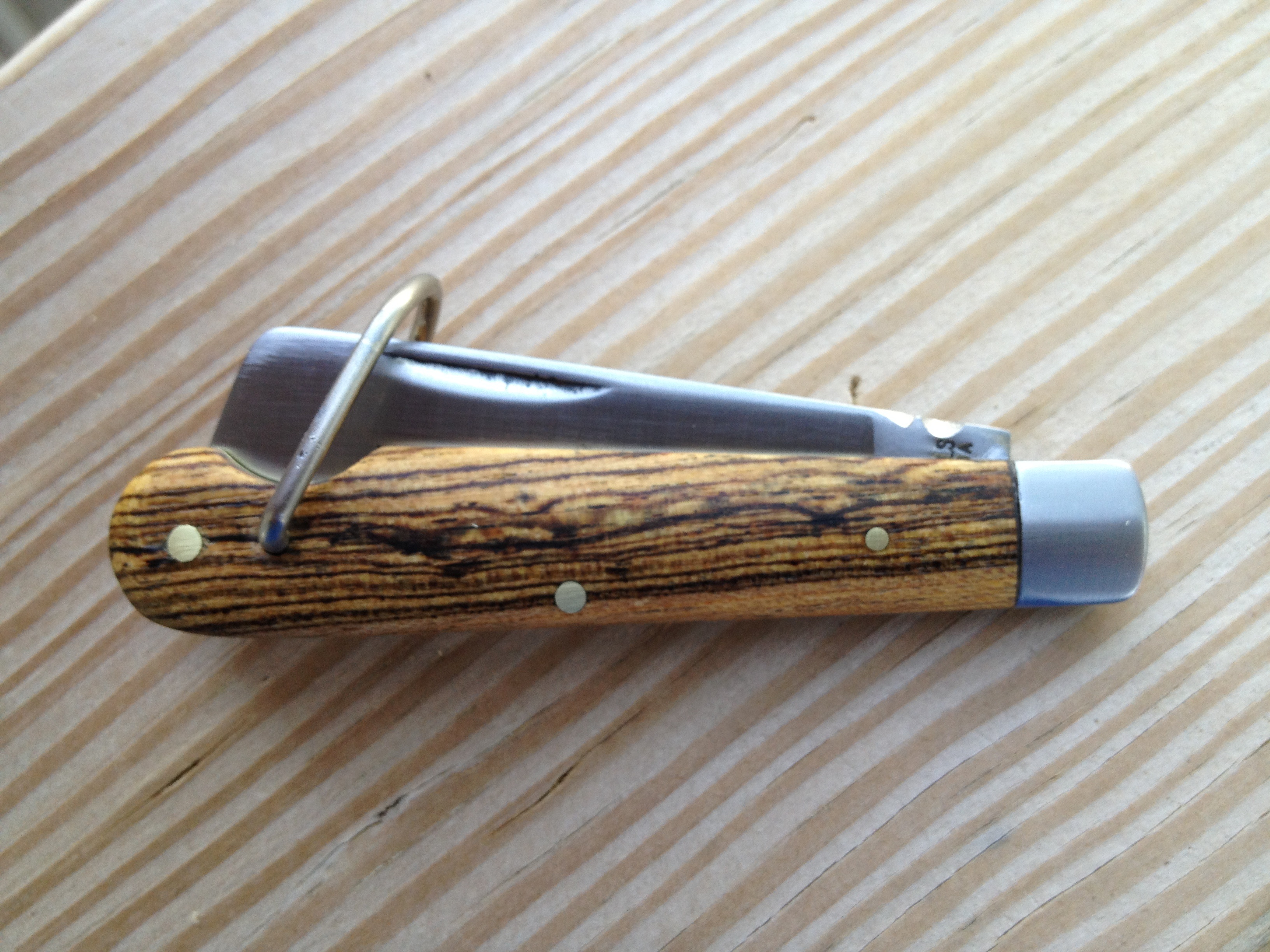

Got this from Muskrat a while ago. Finally got around to it this afternoon. Bacote scales and a try at vine filework. When done I realized the scales must have slipped when clamping and caused quite a gap at the bolsters(first pic). Instead of taking it apart I cut up some brass and ran with it. I then noticed the bolsters aren't completely square. Oh we'll, I'm pretty happy with it. Vines could be tightened up a bit....... Next time.
- Attachments
-
-
-
-
If it ain't broke, break it!
-
orvet
- Gold Tier
- Posts: 19901
- Joined: Tue May 16, 2006 6:23 am
- Location: Willamette Valley, Oregon
Re: Klein
Nice save!
I really like the look of the line of brass next to the bolsters!
In fitting the handles to the bolsters, I find it helpful to under cut the end of the handles by about 6 degrees of angle.
Also when clamping a bare head I will tap the end of the handle material after I have it clamped, just to be sure it is seated square.
I have also found it to be a truth that ALL clamps slip. I plan on it and correct accordingly sometimes resetting the clamp several times to be sure they are correct.
If that is your first attempt, it is very impressive!
If not your first, it is still very nice!
Nice job!
I really like the look of the line of brass next to the bolsters!
In fitting the handles to the bolsters, I find it helpful to under cut the end of the handles by about 6 degrees of angle.
Also when clamping a bare head I will tap the end of the handle material after I have it clamped, just to be sure it is seated square.
I have also found it to be a truth that ALL clamps slip. I plan on it and correct accordingly sometimes resetting the clamp several times to be sure they are correct.
If that is your first attempt, it is very impressive!
If not your first, it is still very nice!
Nice job!
Dale
AAPK Administrator
Please visit my AAPK store: www.allaboutpocketknives.com/orvet
Job 13:15
"Buy more ammo!" - Johnnie Fain
“Evil is Powerless If The Good are Unafraid.” – Ronald Reagan
AAPK Administrator
Please visit my AAPK store: www.allaboutpocketknives.com/orvet
Job 13:15
"Buy more ammo!" - Johnnie Fain
“Evil is Powerless If The Good are Unafraid.” – Ronald Reagan
-
jerryd6818
- Posts: 39458
- Joined: Sun Jan 04, 2009 5:23 am
- Location: Farther down the road.
Re: Klein
I really like that brass strip.
Forged on the anvil of discipline.
The Few. The Proud.
Jerry D.
This country has become more about sub-groups than about it's unity as a nation.
"The #72 pattern has got to be pretty close to the perfect knife."
--T.J. Murphy 2012
The Few. The Proud.
Jerry D.
This country has become more about sub-groups than about it's unity as a nation.
"The #72 pattern has got to be pretty close to the perfect knife."
--T.J. Murphy 2012
-
orvet
- Gold Tier
- Posts: 19901
- Joined: Tue May 16, 2006 6:23 am
- Location: Willamette Valley, Oregon
Re: Klein
I do too Jerry!jerryd6818 wrote:I really like that brass strip.
You can bet you will see it on some of my future work!
Just a side note here-
In an "art" such as knife modification where most folks are self taught, many great discoveries are accidental.
That is certainly true in my case at the very least.
Dale
AAPK Administrator
Please visit my AAPK store: www.allaboutpocketknives.com/orvet
Job 13:15
"Buy more ammo!" - Johnnie Fain
“Evil is Powerless If The Good are Unafraid.” – Ronald Reagan
AAPK Administrator
Please visit my AAPK store: www.allaboutpocketknives.com/orvet
Job 13:15
"Buy more ammo!" - Johnnie Fain
“Evil is Powerless If The Good are Unafraid.” – Ronald Reagan
-
jerryd6818
- Posts: 39458
- Joined: Sun Jan 04, 2009 5:23 am
- Location: Farther down the road.
Re: Klein
Dale, I think that's true of more than just the world of knife repair and modification. Many great and profitable products started out as an attempt to do something entirely unrelated.
Forged on the anvil of discipline.
The Few. The Proud.
Jerry D.
This country has become more about sub-groups than about it's unity as a nation.
"The #72 pattern has got to be pretty close to the perfect knife."
--T.J. Murphy 2012
The Few. The Proud.
Jerry D.
This country has become more about sub-groups than about it's unity as a nation.
"The #72 pattern has got to be pretty close to the perfect knife."
--T.J. Murphy 2012
-
1967redrider
- Gold Tier
- Posts: 21506
- Joined: Wed Feb 02, 2011 4:23 pm
- Location: Alexandria, VA
- Contact:
Re: Klein
Sweet rebuild!
Pocket, fixed, machete, axe, it's all good!
You're going to look awfully silly with that knife sticking out of your @#$. -Clint Eastwood, High Plains Drifter
CHRIST IS KING
You're going to look awfully silly with that knife sticking out of your @#$. -Clint Eastwood, High Plains Drifter
CHRIST IS KING
-
glennbad
- Gold Tier
- Posts: 8178
- Joined: Mon May 15, 2006 11:13 am
- Location: NH
Re: Klein
Very cool work, and I also like the brass spacer.
Along with what Dale was saying about undercutting the scale, something I do with my scale material is to just lightly knock down the edge where the bolster and liner meet. I find that right at that point, it is difficult to get an exact fit. Just taking down that edge slightly seems to help things out.
Oh yeah, the bail and file work really make your piece stand out. Great job!
Along with what Dale was saying about undercutting the scale, something I do with my scale material is to just lightly knock down the edge where the bolster and liner meet. I find that right at that point, it is difficult to get an exact fit. Just taking down that edge slightly seems to help things out.
Oh yeah, the bail and file work really make your piece stand out. Great job!
-
