New concept frame lock

Tony_Wood · Post by **Tony_Wood** » Mon Mar 11, 2019 3:40 pm

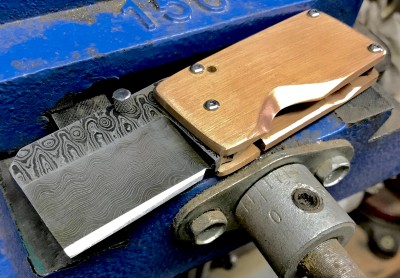

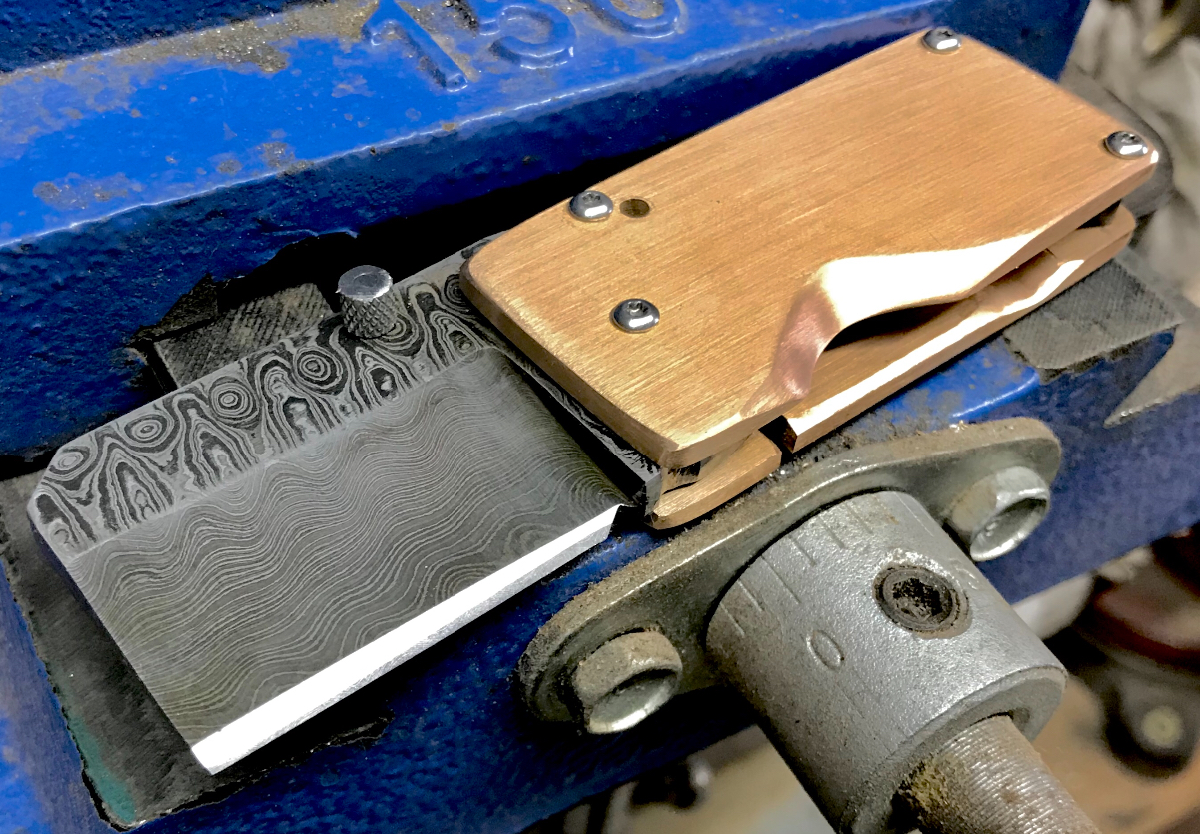

This knife is definitely not a traditional. Though this concept is not new, it is new to me.

The Damascus is not mine, I ordered it in.

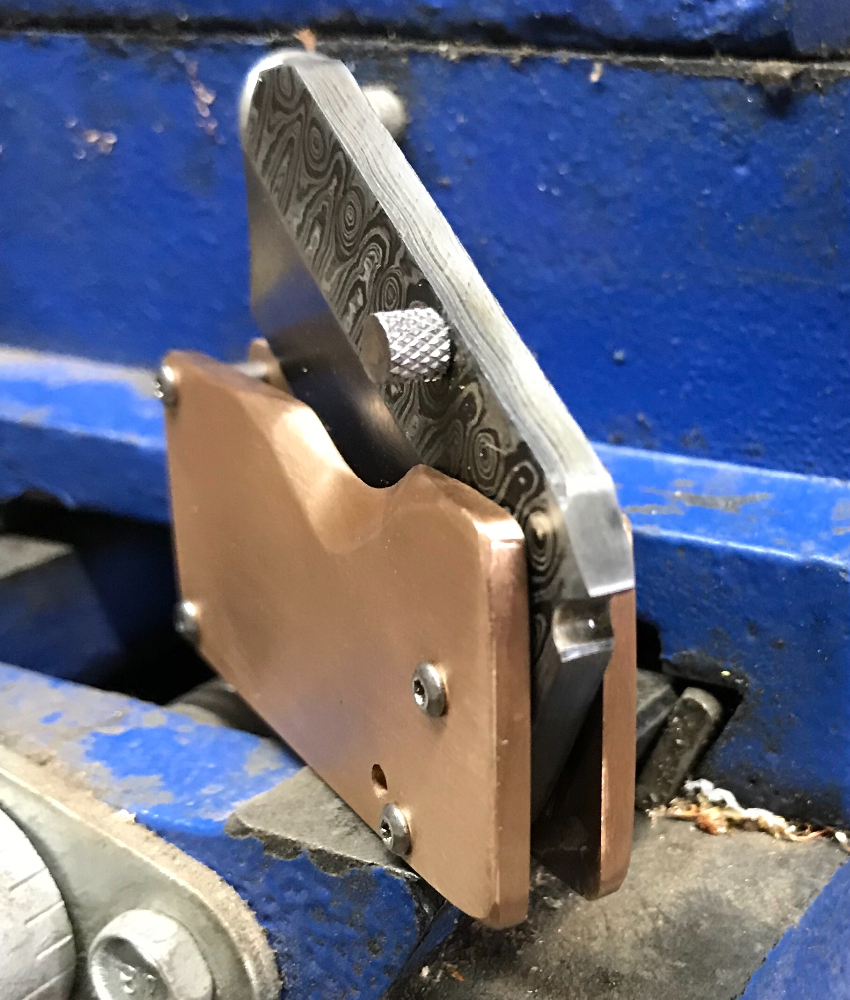

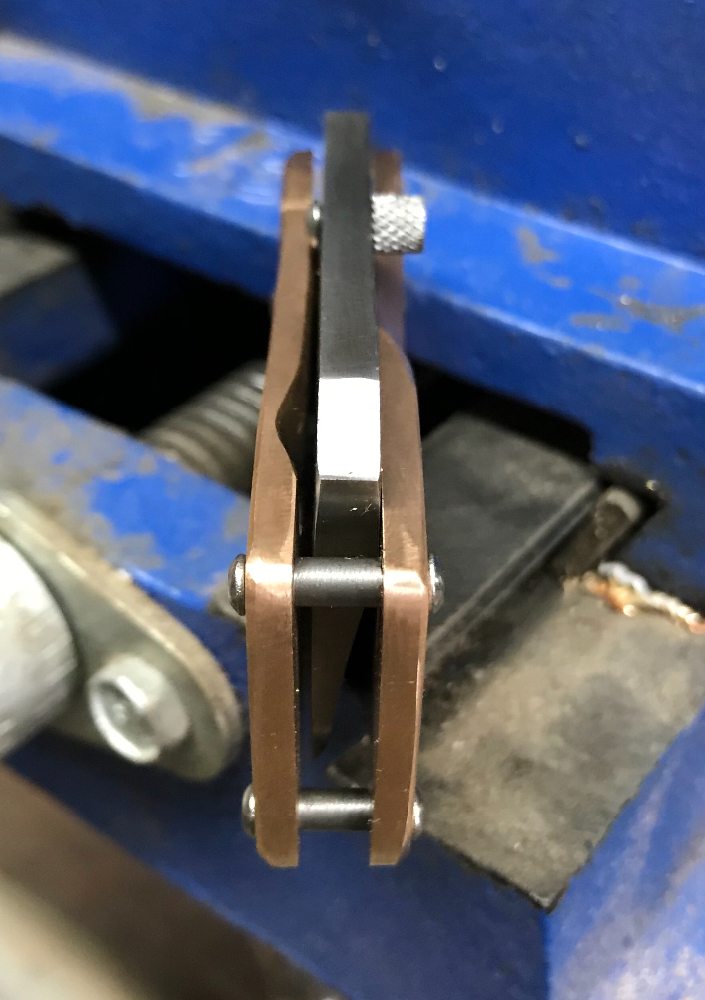

Bronze frame, running on stainless steel pivot, and bronze washers.

Lock up is solid as a rock.

Not satisfied with this shape/design, but it is a starting design for the mechanisms and measurements.

OLDE CUTLER · Post by **OLDE CUTLER** » Mon Mar 11, 2019 3:59 pm

Wow, that is a really neat idea. What are the dimensions? That would be cool made it into a belt buckle.

Tony_Wood · Post by **Tony_Wood** » Mon Mar 11, 2019 4:26 pm

OLDE CUTLER wrote:Wow, that is a really neat idea. What are the dimensions? That would be cool made it into a belt buckle.

Thanks OC. That would be a great idea!
Open it is 4.25”. Closed it is 2.5”

eveled · Post by **eveled** » Mon Mar 11, 2019 6:57 pm

It has a beauty all it’s own.

Tony_Wood · Post by **Tony_Wood** » Mon Mar 11, 2019 10:53 pm

eveled wrote:It has a beauty all it’s own.

Thanks Ed.

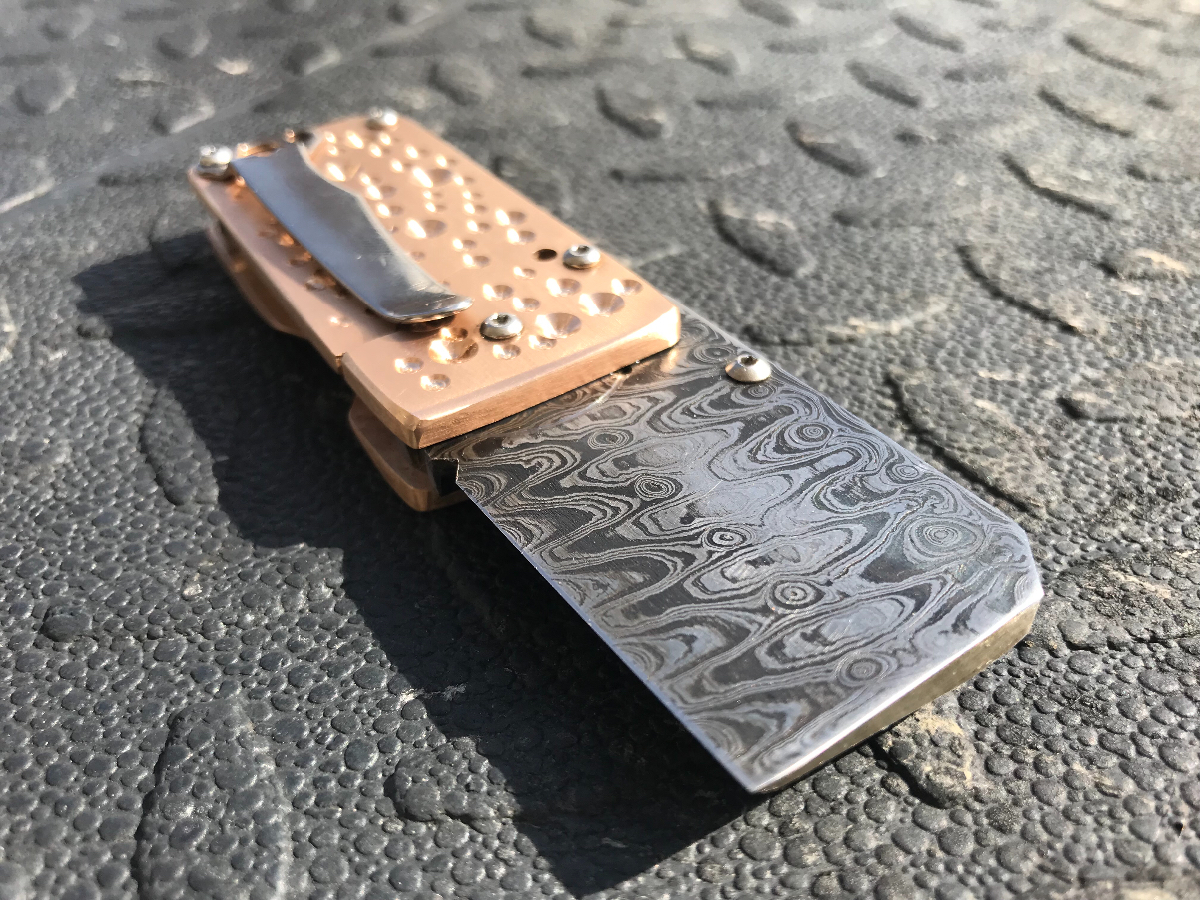

I also added a pocket clip and did some “lightening of the load.”

FRJ · Post by **FRJ** » Tue Mar 12, 2019 12:38 am

Very nice concept, Tony.
Part rope knife and part froe and a fine all around cutter of things.
Sweet!

glennbad · Post by **glennbad** » Tue Mar 12, 2019 1:06 am

Cool innovative design!

edge213 · Post by **edge213** » Tue Mar 12, 2019 10:47 pm

That's really cool!
But, I liked it better before the "jigging".
