SO..... after some weeping and gnashing of teeth, I researched the topic in several areas of the www net, I came up with this.....
If y'all want to add or subtract you are welcome to do so.
I HOPE this will help someone get a 2" x 72" sander on their bench at a minimal cost....

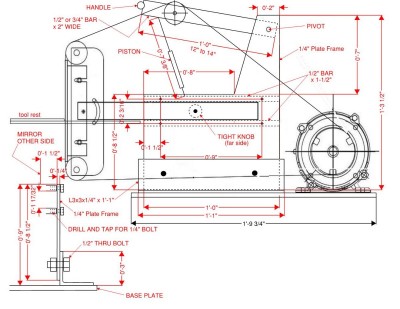

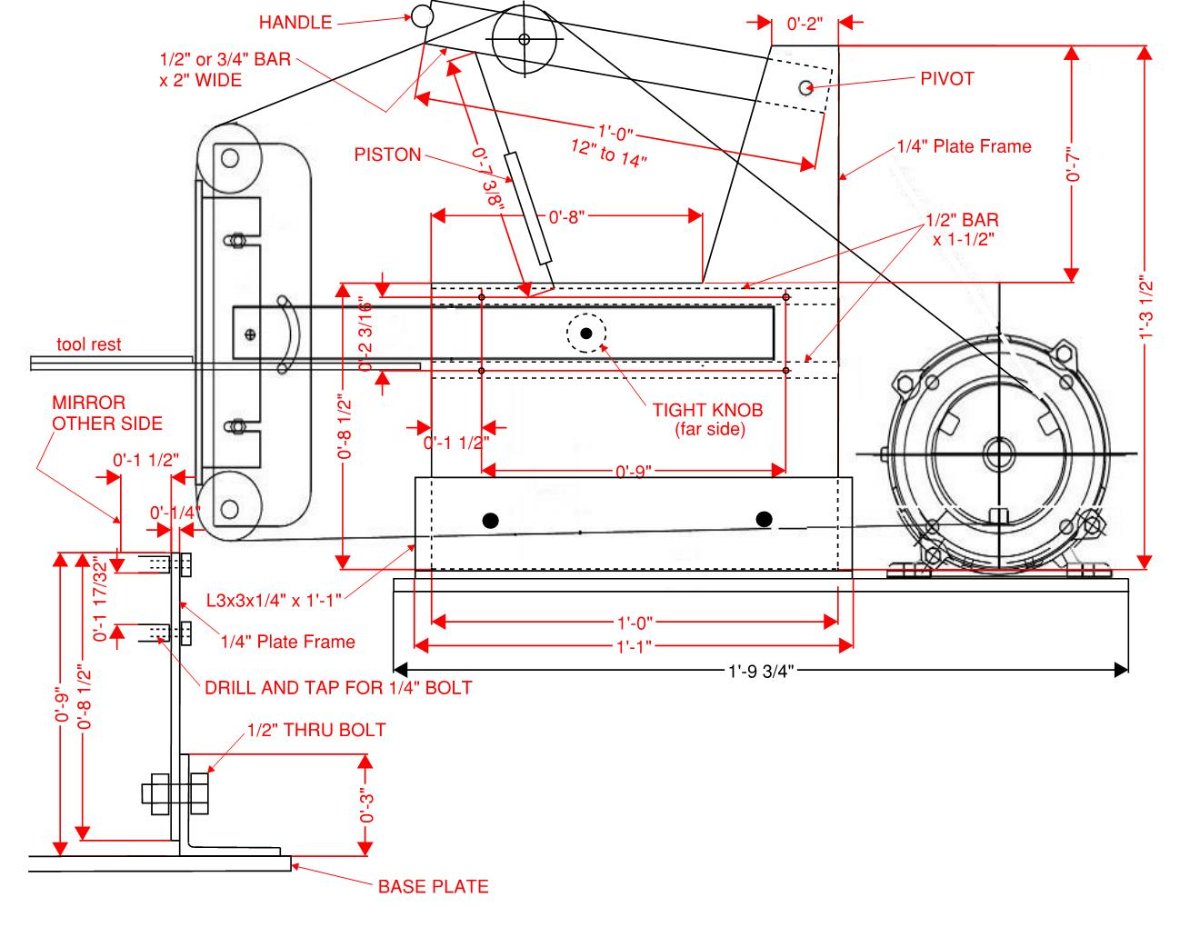

ANYWAY.... here is a layout WITH DIMENSIONS of the sander I hope to build .... LOL.... I drew up this sketch so I would have something to go by for my build.
(that detail in the lower left of the plan, is a section thru the main body of the frame.)
The plan..... The total length from the back of the motor to the front of the grinding surface should be about 2'-3" to 2'-6" or there about.
I researched the motor and it looks like the other builders prefer an electric motor somewhere in the 1 HP to 3 HP range. It is hard to find one that powerful that will just plug in to a household socket (120V)... SO, I had to jump up to a 240V motor. They also suggest a TEFC motor to keep grind dust out. I found a bunch on ebay that sells electric motors for a reasonable price.

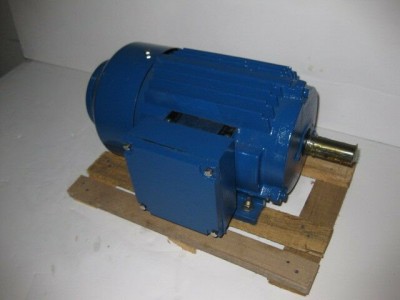

I got this one on the way for a total of $133.17 SHIPPED to me.....

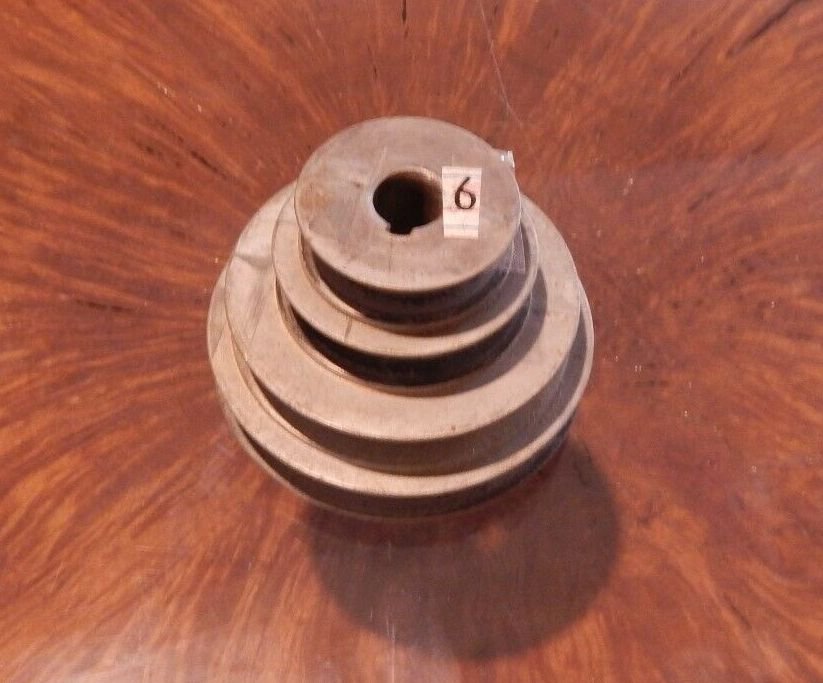

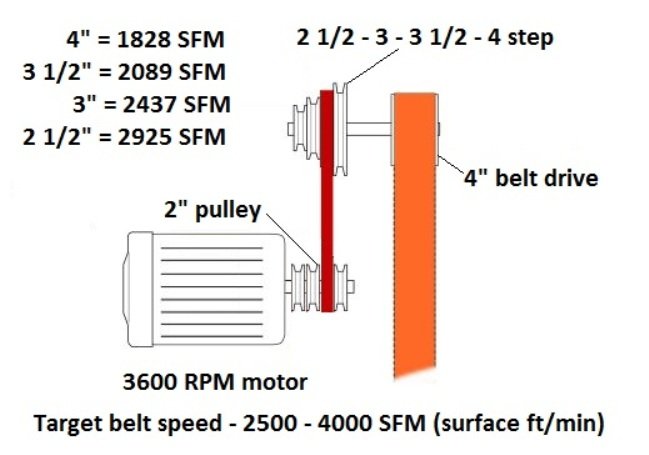

It is a Surplus Western (Brook Compton) 1.5 HP 230/460 volt, 3 phase, TEFC (Totally Enclosed Fan Cooled), 3600 RPM motor.
It has a 7/8" diameter shaft.

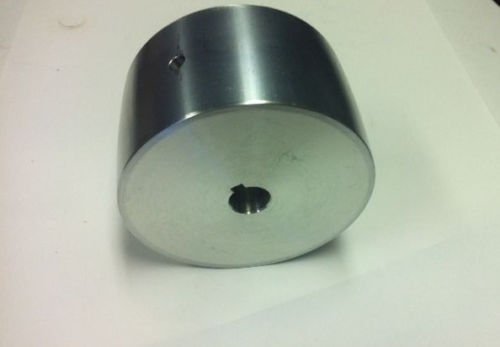

I got myself a 4" solid aluminum drive wheel from Origin Blade Maker (dot com). They have all the parts you want to make your sander OR you can buy the whole thing motor included from them somewhere in the $1200 to $1500 range (that is why I am building mine!)
Here is the drive wheel.....
I got all the wheels from OBM because the price was good and I didn't want to try to find or made a set of wheels that would be precision quality for this project.
That being said, I got the adjustable tracking wheel from them also.... It is already mounted and hinged. All I will have to do is weld it on the upper tensioning arm and make an adjusting screw.

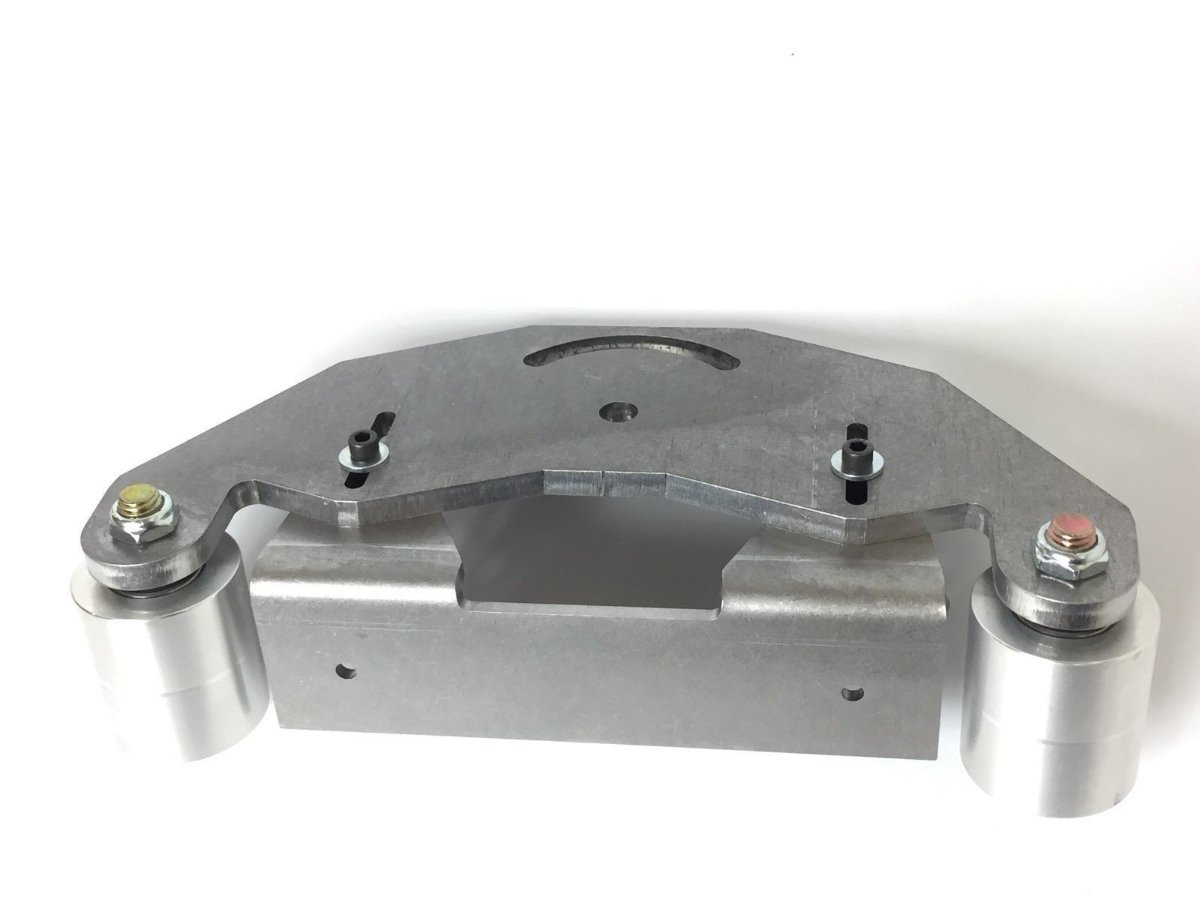

Another part I ordered from OBM was the front backing set-up with wheels already mounted and an adjustment slot cut into it. I saw all sorts of tutorials about how to make this MAJOR part but for $94 I got it from OBM and it is READY TO GO.....
This one is steel but you can get one from them that is aluminum.

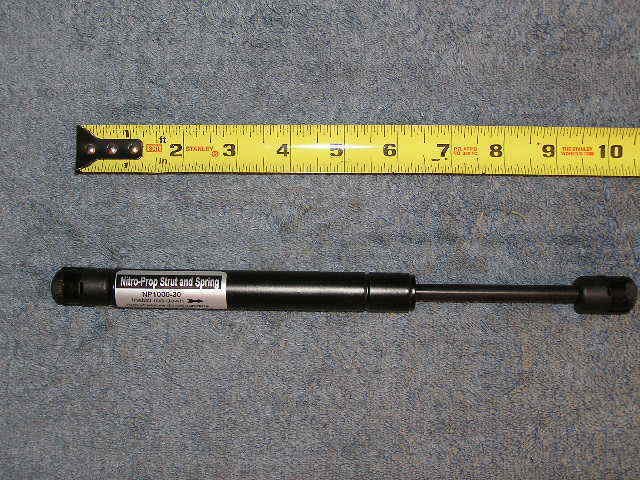

I finally found (some place on the net) where a guy spec-ed out his gas piston spring. He said his was a 30 pound piston. (I would imagine 20# to 30# would be fine) SO.... according to my plan, I need one that is somewhere in the 7" to 10" range. SO, I found this guy on the bay. it is 10" fully extended and 7" compressed. I should be able to work with that.
The seller had all strengths and lengths. I got this one on it's way to me for $21 shipped.....

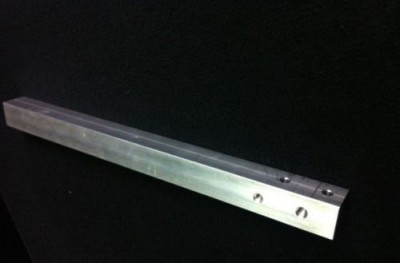

I thought about buying a tooling arm from OBM ... They have this one for $36 plus some shipping. That would add up to be somewhere close to $50 in my hands....

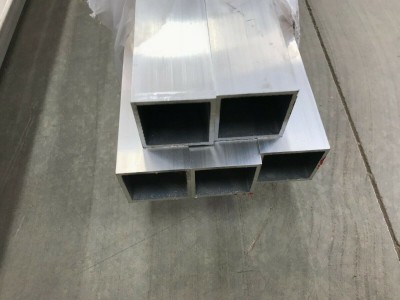

BUT.... I thought about it and figured I would just make my own. I ordered this piece of aluminum tube from a guy on the bay for $19 shipped. I figure I can drill it and make it like I want.
It is 1 1/2" square tube x 24" long. (generic picture)....
SO... here is where I stand so far, with the (I sorta think) major parts secured.....
Electric motor ...... $133.17 (shipped)
OBM parts ........... $225.00 (shipped)
Gas spring ........... $20.89 (shipped)
Aluminum tube ..... $18.45 (shipped)
----------------------------------------------
Total thus far....... $397.51 invested
NOW...... short of buying bolts, turn handles or what ever else I want to use to dress this guy up with, .... I plan to build the balance from metal I can get here at my place of business FOR FREE ..... (that is the price I like to pay for stuff....LOL). You can do similar by using scrap materials.

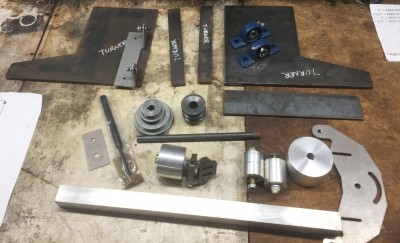

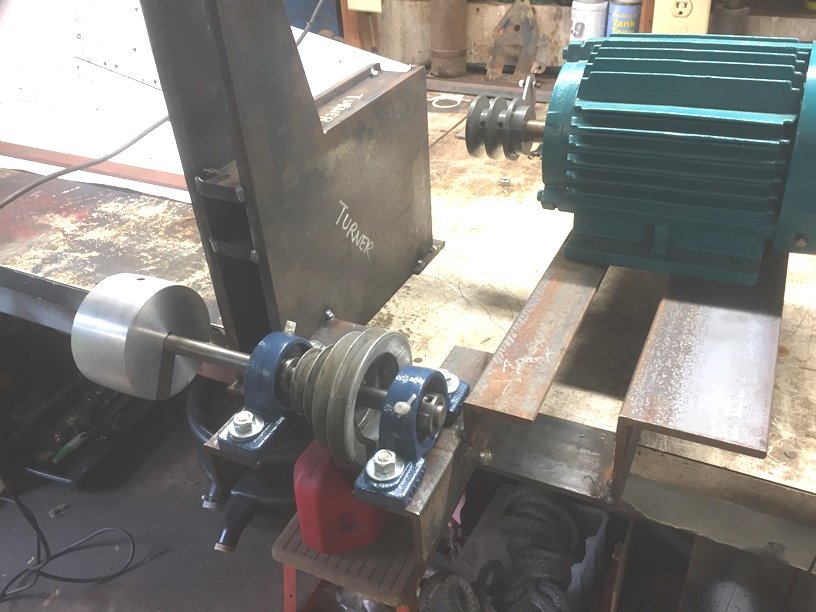

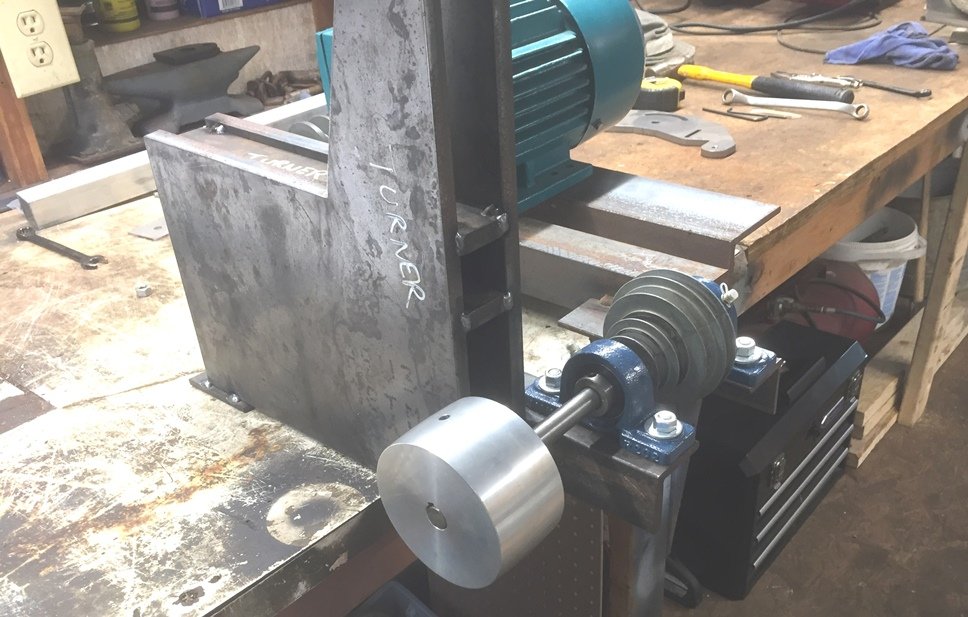

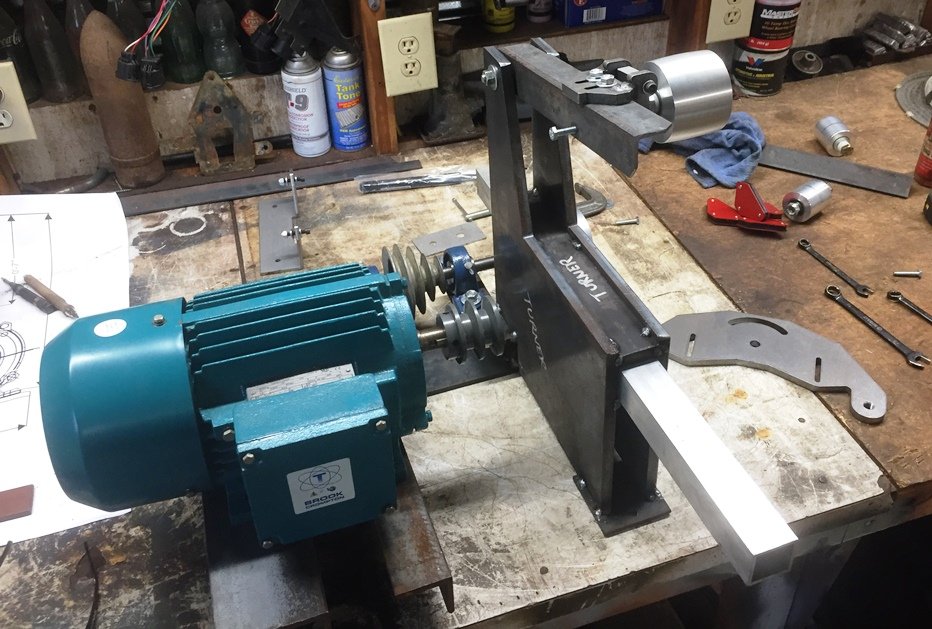

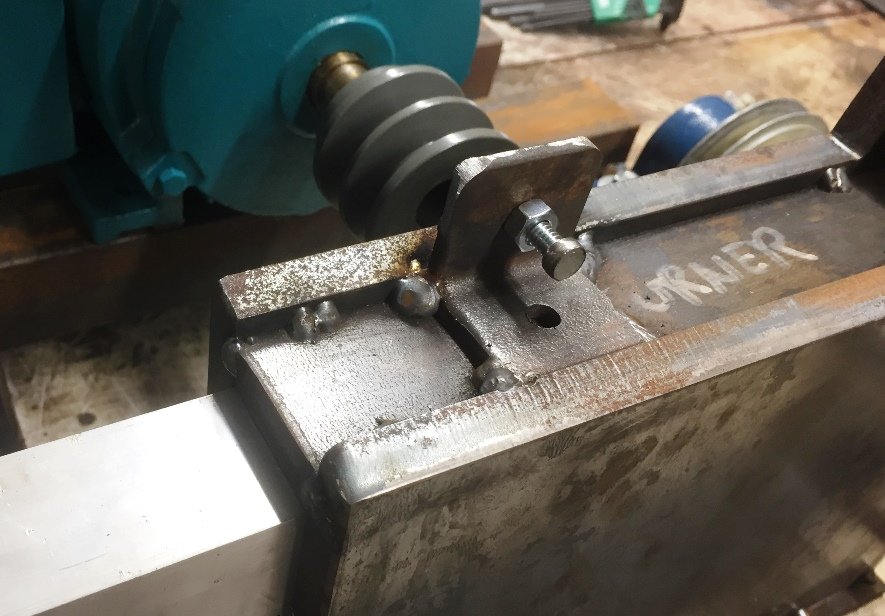

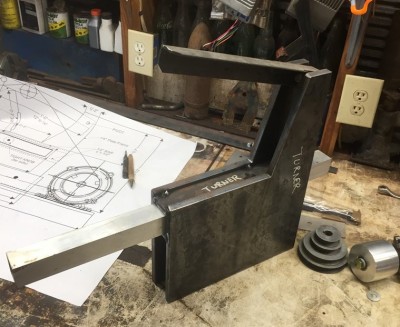

I have the 2 main side pieces being cut out as we speak from 1/4" plate on our CNC machine.... (YES, that is cheating!!

The rest I will dig out of the scrap bins. Far a finished build, I hope all else I will have to do is, cut, drill, weld and bolt together.

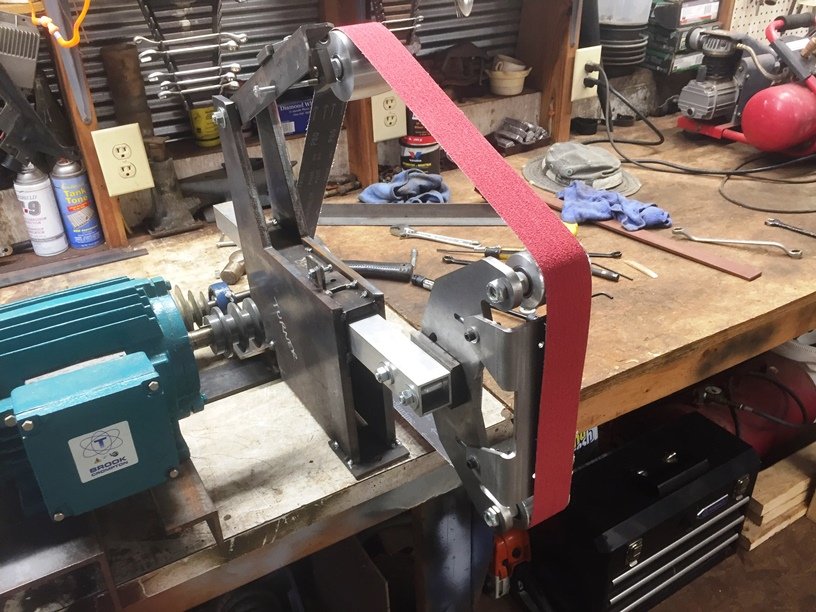

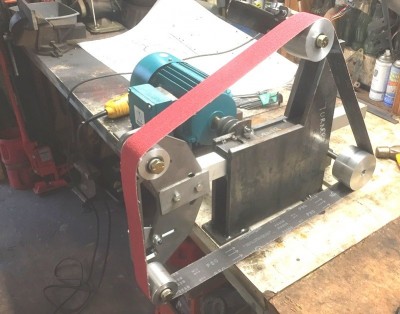

Stay tuned for further developments.....
