old Draw Knife

Post by enuf »

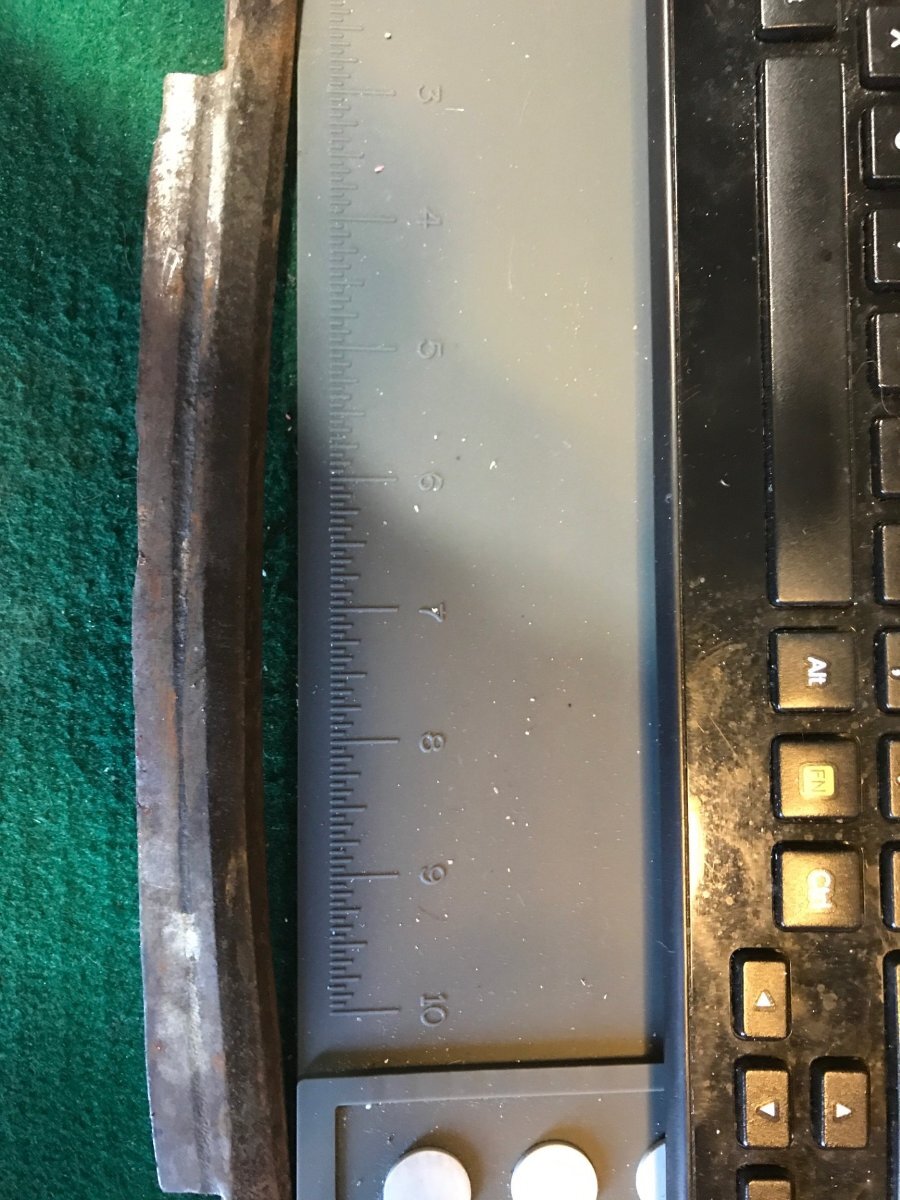

This was my grandfathers and I'd like to use it to build a selfbow - is there any hope to bring this blade back into working condition?
Attachments
old Draw Knife 1.jpg
old Draw Knife 2.jpg
old Draw Knife 2.jpg (46.05 KiB) Viewed 855 times
Dan - ATA NSSA
User avatar
OLDE CUTLER
Gold Tier
Gold Tier
Posts: 4991
Joined: Wed Oct 11, 2017 8:11 pm
Location: South Dakota

Re: old Draw Knife

Post by OLDE CUTLER »

enuf wrote: Sun Mar 09, 2025 5:14 pm This was my grandfathers and I'd like to use it to build a selfbow - is there any hope to bring this blade back into working condition?
I also have my grandpas drawknife and still use it for decoy carving. Yours shows a lot of pitting, however it can still be cleaned up, and sharpened for use. The pitting will interfere somewhat with getting a good edge, but should still be useful. Check the link below for pics of my RT drawknife and a jig for sharpening.

https://www.allaboutpocketknives.com/kn ... 62#p679262
"Sometimes even the blind chicken finds corn"
eveled
Bronze Tier
Bronze Tier
Posts: 2544
Joined: Sun Oct 29, 2017 9:37 pm

Re: old Draw Knife

Post by eveled »

I’m sure it can be reprofiled. It will have to be thinned too.
User avatar
enuf
Posts: 352
Joined: Fri Dec 08, 2023 3:32 pm
Location: T-Town, OK

Re: old Draw Knife

Post by enuf »

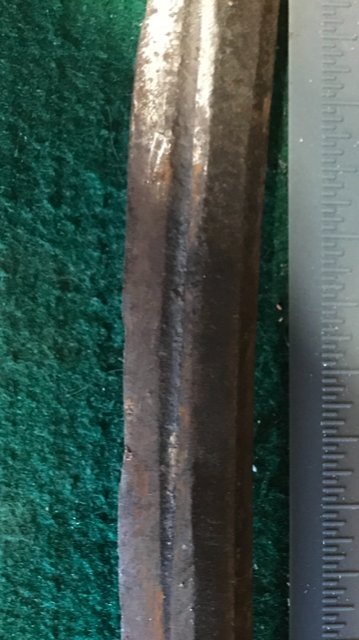

Well, I gave it the old college try. So not really a lot of pitting but us kids when we were kids abused that old knife on things it ought not have been used on - now I get it. So, I profiled the edge to the same shape as the handle enough to grind out the damage. What I discovered is that - that grove is where they welded a blade to the frame, so behind the blade was/is a shelf, so to speak, where the blade, likely a different grade of steel from the frame, rested and was welded. I am not going to, but I could grind out the weld and the blade would fall off and there'd be a shelf to lay a new blade on it and weld it back up.
Dan - ATA NSSA
